Klasse "balken"
"balken" ist ein Klasse für die Darstellung eines Balkendiagramms. Ich wollte einfach wissen wie sowas funktioniert. Ist auch sicher noch erweiterungsfähig. DEMO
Sie dürfen die Skripts gerne verwenden. Haftung gibt es von meiner Seite keine. Download
'balken.php'
<?php
/*
Klasse balken Darstellung einer Balkengrafik.
--------------------------------------------------------------------------------------------------
*/
class balken
{
public $bild;
public $breite;
public $hoehe;
public $tsize = 24;
public $maxhoehe = 100;
public $randoben = 40;
public $fusshoehe = 40;
public $randlinks = 100;
public $randrechts = 50;
public $schrittweite = 10;
public $ybereich;
public $ytext;
//Farben
public $black;
public function __construct($b,$h,$f) {
$f = $this->farbe($f);
$this->breite = $b;
$this->hoehe = $h;
$this->bild = imagecreatetruecolor($b,$h);
$rgb = $this->html2rgb($f);
$hintergrund=imagecolorallocate ( $this->bild, $rgb[0], $rgb[1], $rgb[2] );
imagefill($this->bild,0,0,$hintergrund);
$this->black = imagecolorallocate ( $this->bild, 0, 0, 0 );
imagerectangle ( $this->bild, 0, 0, $b-1, $h-1, $this->black );
}
public function farbe($farbe) {
$farben = array(
'black' => '#000000',
'maroon' => '#800000',
'green' => '#008000',
'olive' => '#808000',
'navy' => '#000080',
'purple' => '#800080',
'teal' => '#008080',
'silver' => '#C0C0C0',
'gray' => '#808080',
'red' => '#FF0000',
'lime' => '#00FF00',
'yellow' => '#FFFF00',
'blue' => '#0000FF',
'fuchsia' => '#FF00FF',
'aqua' => '#00FFFF',
'white' => '#FFFFFF');
if ( array_key_exists ( $farbe, $farben ) )
return($farben[$farbe]);
else
return($farbe);
}
public function anzeigen() {
imagepng($this->bild);
}
public function speichern($datei) {
imagepng($this->bild,$datei);
}
public function titel($text,$farbe) {
$farbe = $this->farbe($farbe);
$text = utf8_decode($text);
$rgb = $this->html2rgb($farbe);
$font_c = imagecolorallocate ( $this->bild, $rgb[0], $rgb[1], $rgb[2] );
$textwerte = imagettfbbox ( $this->tsize, 0, 'arialbd.ttf', $text );
$x = ($this->breite / 2) - ($textwerte[2] / 2);
$y = abs($textwerte[5])+ (abs($textwerte[5]) / 2);
$this->randoben = $y + abs($textwerte[1])+10;
imagettftext ($this->bild, $this->tsize, 0, $x, $y, $font_c, 'arialbd.ttf',$text);
}
public function drawbalken($x,$y,$b,$h,$farbe) {
$farbe = $this->farbe($farbe);
$rgb = $this->html2rgb($farbe);
$farbe_b = imagecolorallocate ( $this->bild, $rgb[0], $rgb[1], $rgb[2] );
$h = $this->hoehe - $h - $y;
$y = $this->hoehe - $y;
$b = $x + $b;
imagefilledrectangle ( $this->bild, $x, $y, $b, $h, $farbe_b );
imagerectangle ( $this->bild, $x, $y, $b, $h, $this->black );
}
public function beschriftung_y($y,$wert) {
imageline($this->bild,$this->randlinks-5,$y,$this->breite-$this->randrechts,$y,$this->black);
$textbreite = imagefontwidth ( 4 ) * strlen ( $wert );
$x = $this->randlinks - $textbreite - 10;
imagestring ( $this->bild,4,$x,$y-8, $wert, $this->black );
}
public function balkengrafik($array,$farbe) {
$farbe = $this->farbe($farbe);
$anzahl = count($array);
$ebreite = round(($this->breite - $this->randlinks - $this->randrechts) / (3 * $anzahl),0);
$x2 = $ebreite + $this->randlinks;
$y2 = $this->hoehe + $this->randoben - ($this->maxhoehe * ($this->hoehe) / $this->maxhoehe);
$textbreite2 = imagefontwidth ( 4 ) * strlen ( $this->ytext );
$pos = $this->hoehe /2 + $textbreite2 /2;
imagestringup ( $this->bild, 4,10, $pos, $this->ytext, $this->black );
$this->ybereich = round($this->hoehe-$this->fusshoehe - $y2,0);
$this->beschriftung_y($y2,$this->maxhoehe);
$s = $this->maxhoehe-$this->schrittweite;
$s2 = 0;
$y3 = $y2 + ($this->ybereich / $this->maxhoehe * $this->schrittweite);
while ( $s > 0) {
$this->beschriftung_y($y3,$s);
$s = $s - $this->schrittweite;
$y3 = $y3 + ($this->ybereich / $this->maxhoehe * $this->schrittweite);
}
for($i=0;$i < $anzahl;$i++) {
$x = $i+1;
$oy = $array[$i][1];
$y = $oy * ($this->hoehe - $this->fusshoehe-$this->randoben) / $this->maxhoehe;
$this->drawbalken($x2,$this->fusshoehe,$ebreite,$y,$farbe);
$x2 = $x2 + 3 * $ebreite;
}
// Linie für X-Achse
$this->beschriftung_y($this->hoehe-$this->fusshoehe,'0');
// Linie für Y-Achse
imageline($this->bild,$this->randlinks,$this->hoehe-$this->fusshoehe+5,$this->randlinks,$y2,$this->black);
}
public function beschriftung_x($array) {
$anzahl = count($array);
$ebreite = round(($this->breite - $this->randlinks - $this->randrechts) / (3 * $anzahl),0);
$x2 = $ebreite + $this->randlinks; $x3 = $ebreite + $this->randlinks;
for($i=0;$i < $anzahl;$i++) {
$black = imagecolorallocate ( $this->bild, 0, 0, 0 );
$text = utf8_decode($array[$i][0]);
$textbreite = imagefontwidth ( 4 ) * strlen ( $text );
// $x2 = $x2 - ($textbreite / 2);
$y = $this->hoehe - $this->fusshoehe + 10;
$x3 = $x3 + ($ebreite/2) - ($textbreite / 2);
imagestring ( $this->bild,4,$x3,$y, $text, $black );
$x2 = $x2 + 3 * $ebreite;
$x3 = $x2 ;
}
}
public function html2rgb($color)
{
if ($color[0] == '#')
$color = substr($color, 1);
if (strlen($color) == 6)
list($r, $g, $b) = array($color[0].$color[1],
$color[2].$color[3],
$color[4].$color[5]);
elseif (strlen($color) == 3)
list($r, $g, $b) = array($color[0].$color[0], $color[1].$color[1], $color[2].$color[2]);
else
return false;
$r = hexdec($r); $g = hexdec($g); $b = hexdec($b);
return array($r, $g, $b);
}
public function __destruct() {
imagedestroy($this->bild);
}
}
?>

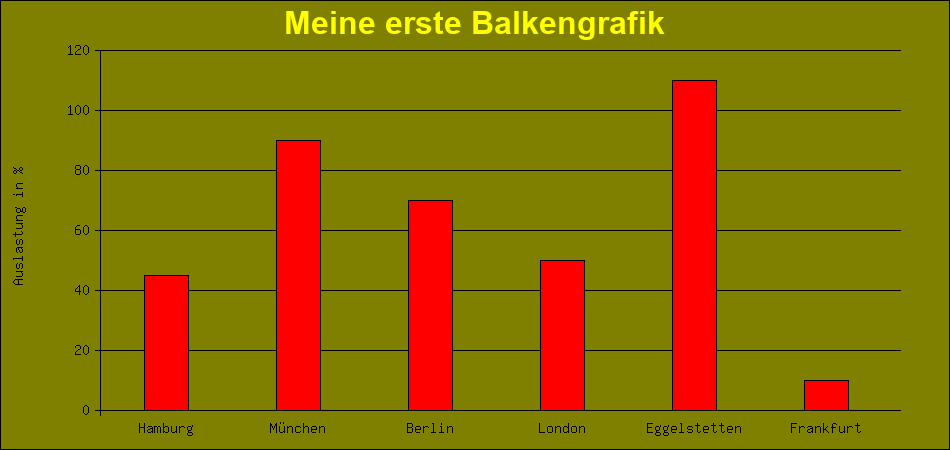

Beispiel 'balkentest.php' |
<?php
include('balken.php');
$datei = 'balken.txt';
$fp = fopen ( $datei, 'r' );
while ( ! feof ( $fp ) )
{
$str = fgetcsv ( $fp, 200, ';' );
list($a,$b) = $str;
$a = iconv('UTF-8', 'ISO-8859-1//IGNORE', $a);
$a = utf8_encode($a);
$grafik[] = array($a, $b);
}
fclose ( $fp );
$bild = new balken(950,450,'olive');
$bild->maxhoehe = 120;
$bild->schrittweite = 20;
$bild->tsize = 24;
$bild->randrechts = 50;
$bild->ytext = 'Auslastung in %';
$bild->titel('Meine erste Balkengrafik','yellow');
$bild->balkengrafik($grafik,'red');
$bild->beschriftung_x($grafik);
header("Content-type:image/png; charset= utf-8");
$bild->anzeigen();
unset($bild);
?>
Beispiel 'balken.txt'˜ für balkentest.php |
Hamburg;45
München;90
Berlin;70
London;50
Eggelstetten;100
Frankfurt;10
